Track glider/ eyelet Carriers for Wave Curtain System (Ripple Fold System)

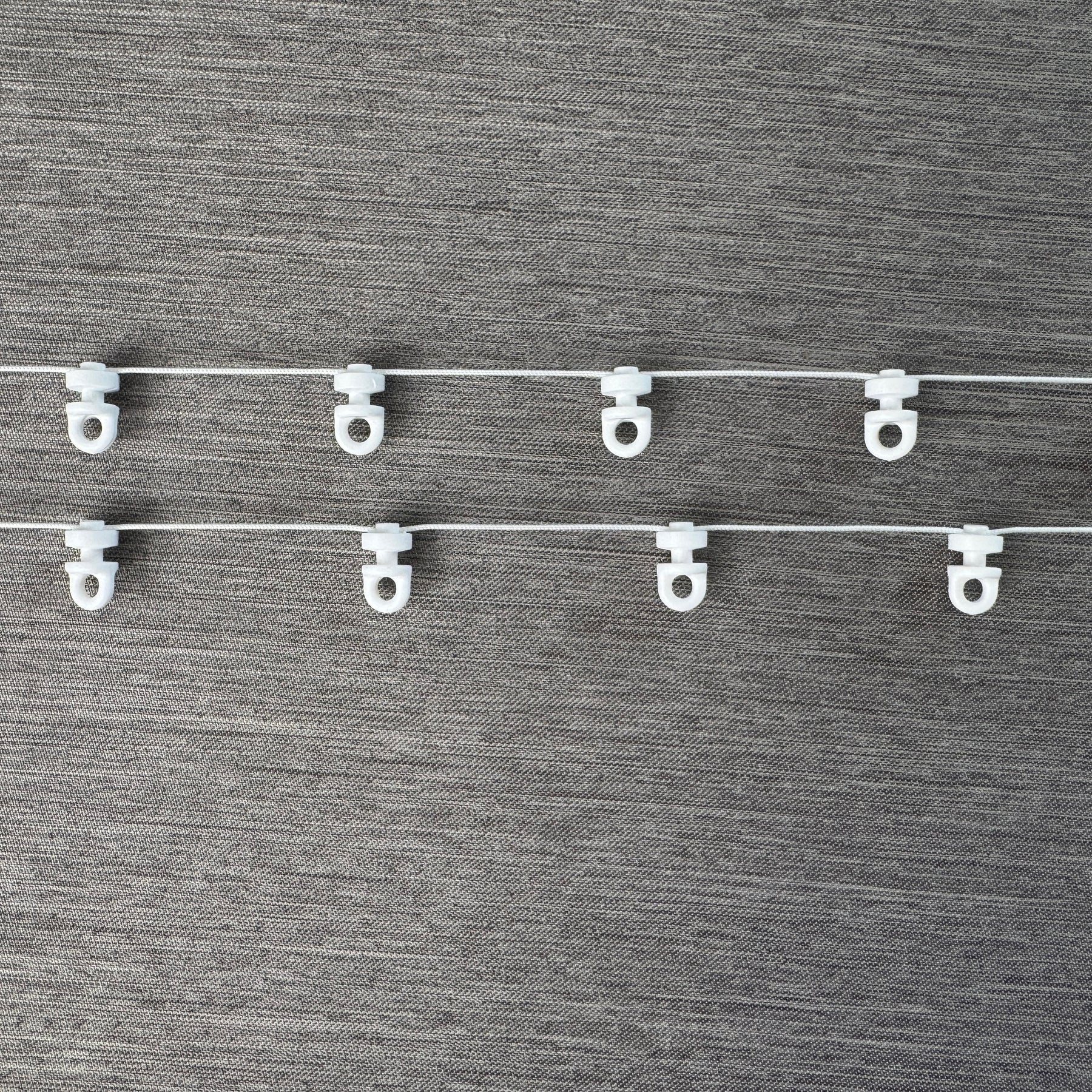

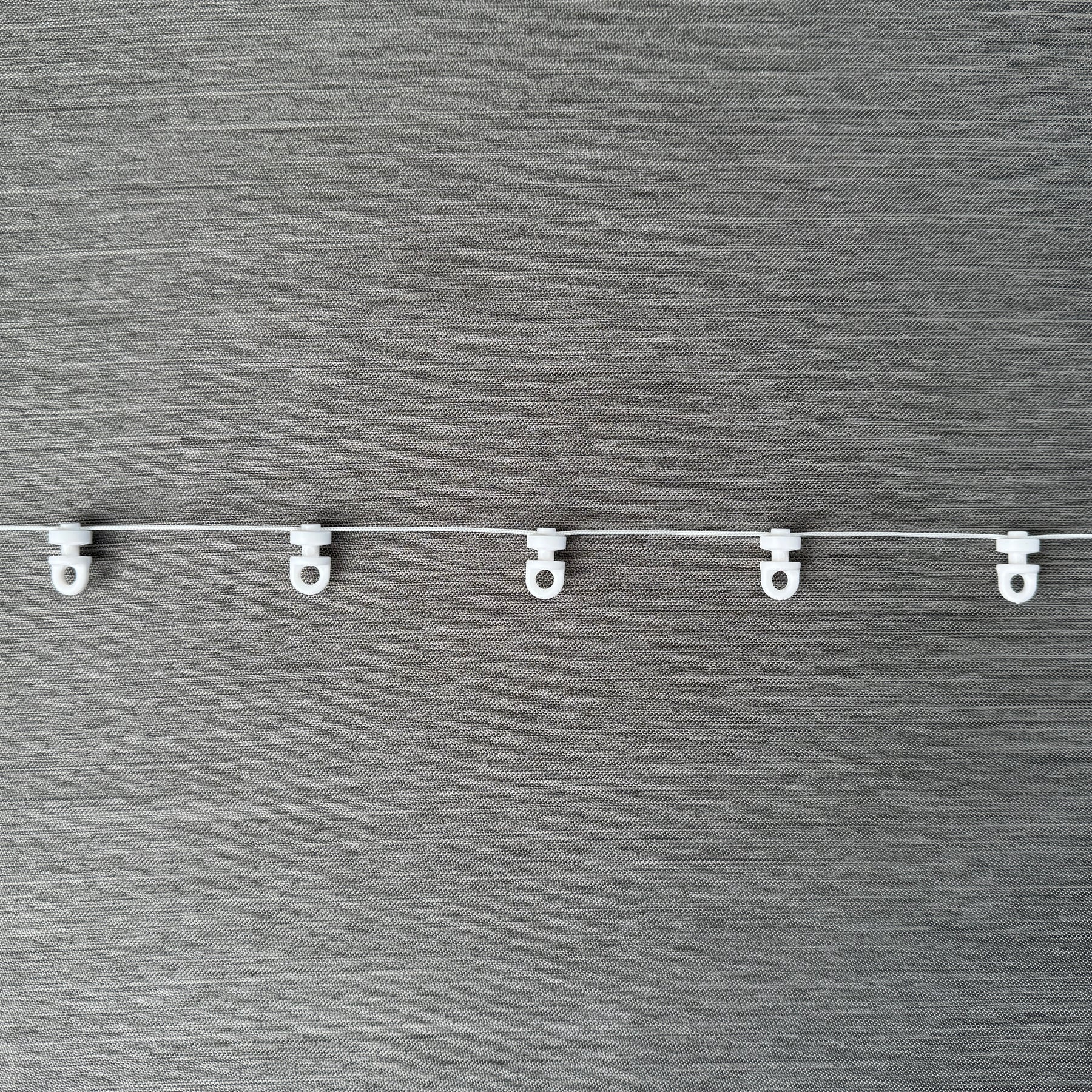

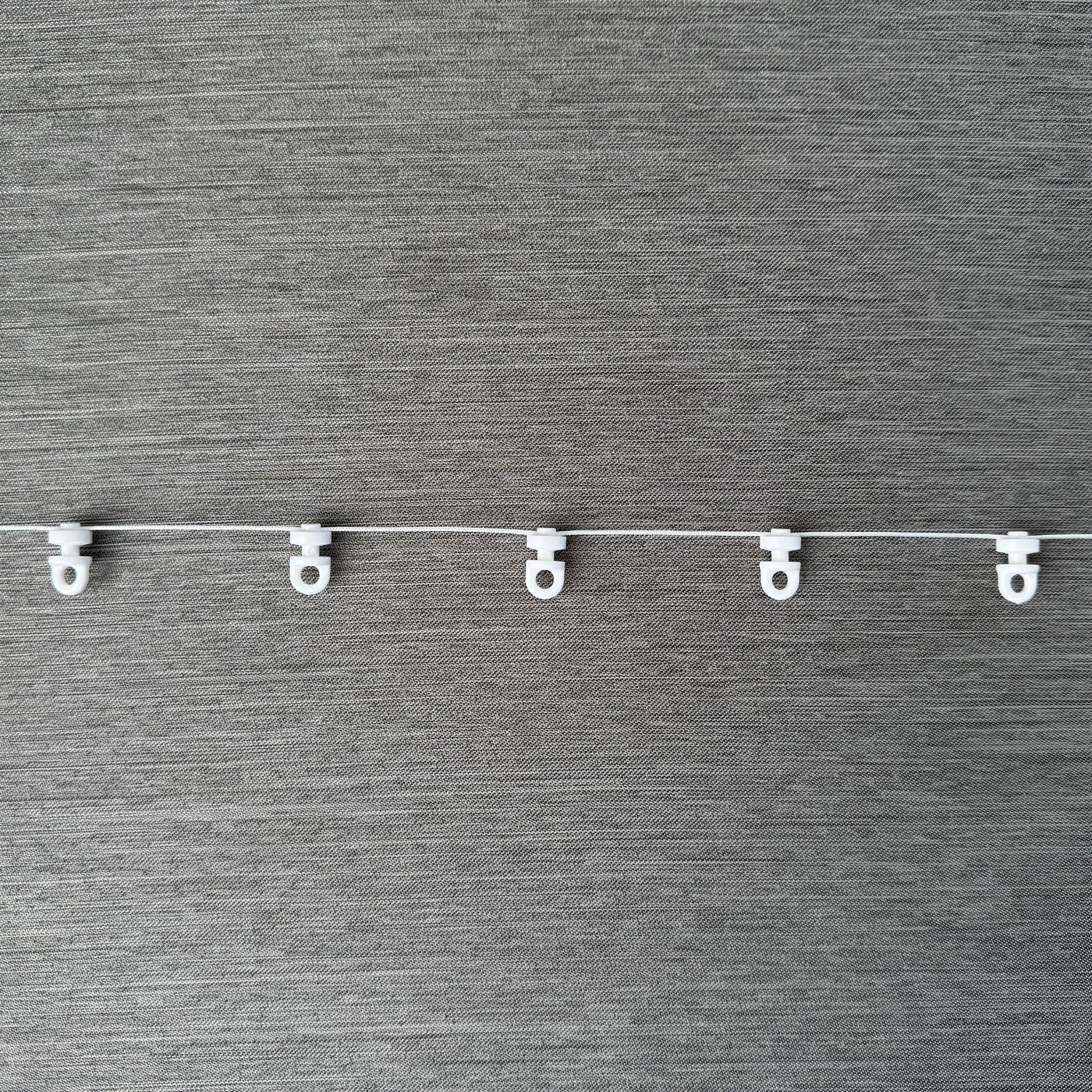

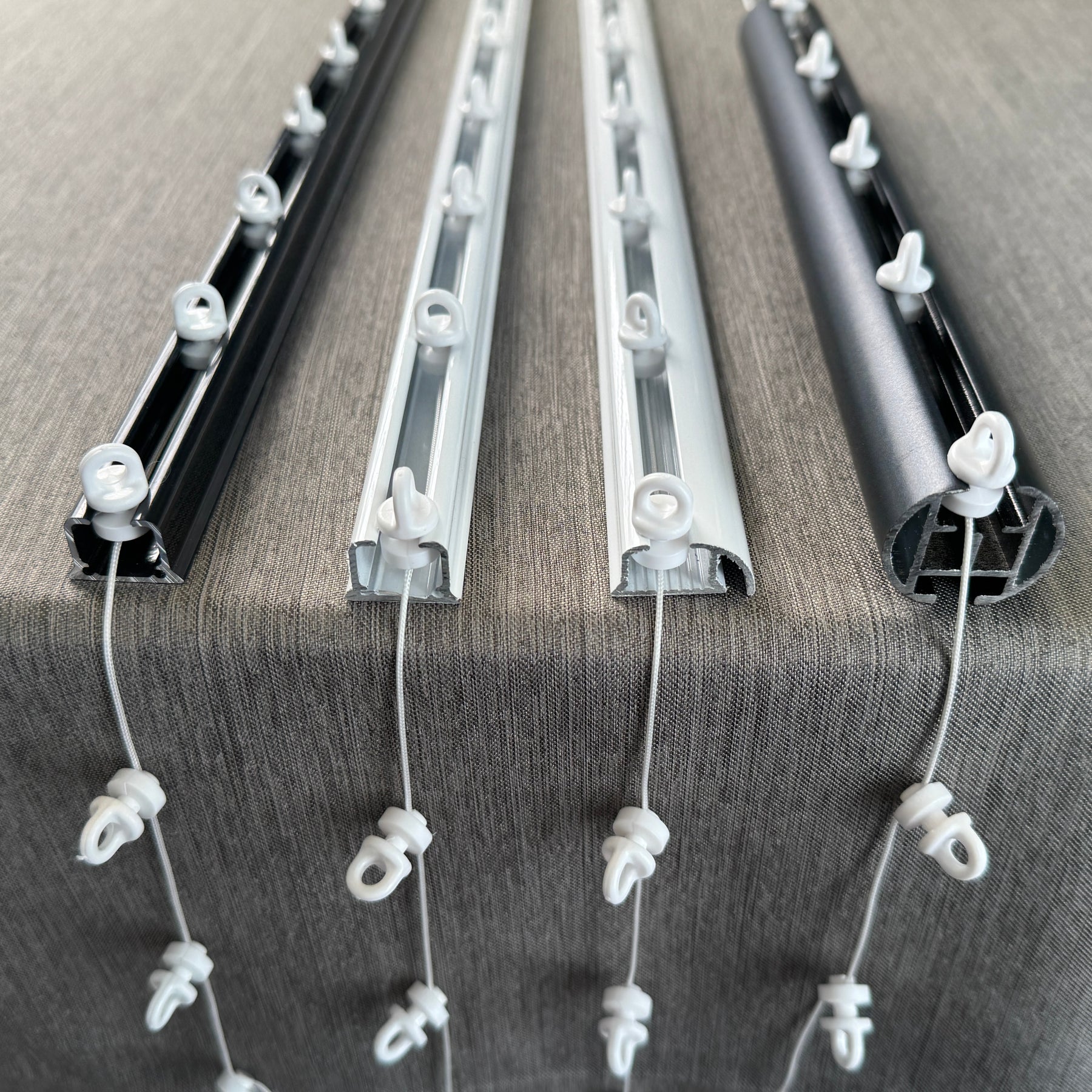

This model of carriers will perfectly fit in KS, DS and CRS rail systems. Carriers are attached with a cord to each at equal spacing to create perfect waves. The waves will always keep their form and looks nice in opened and closed position. To achieve the perfect Ripple Fold effect, simply pair the Eyelet Carriers with our Wave Tape with and Curtain Hooks.

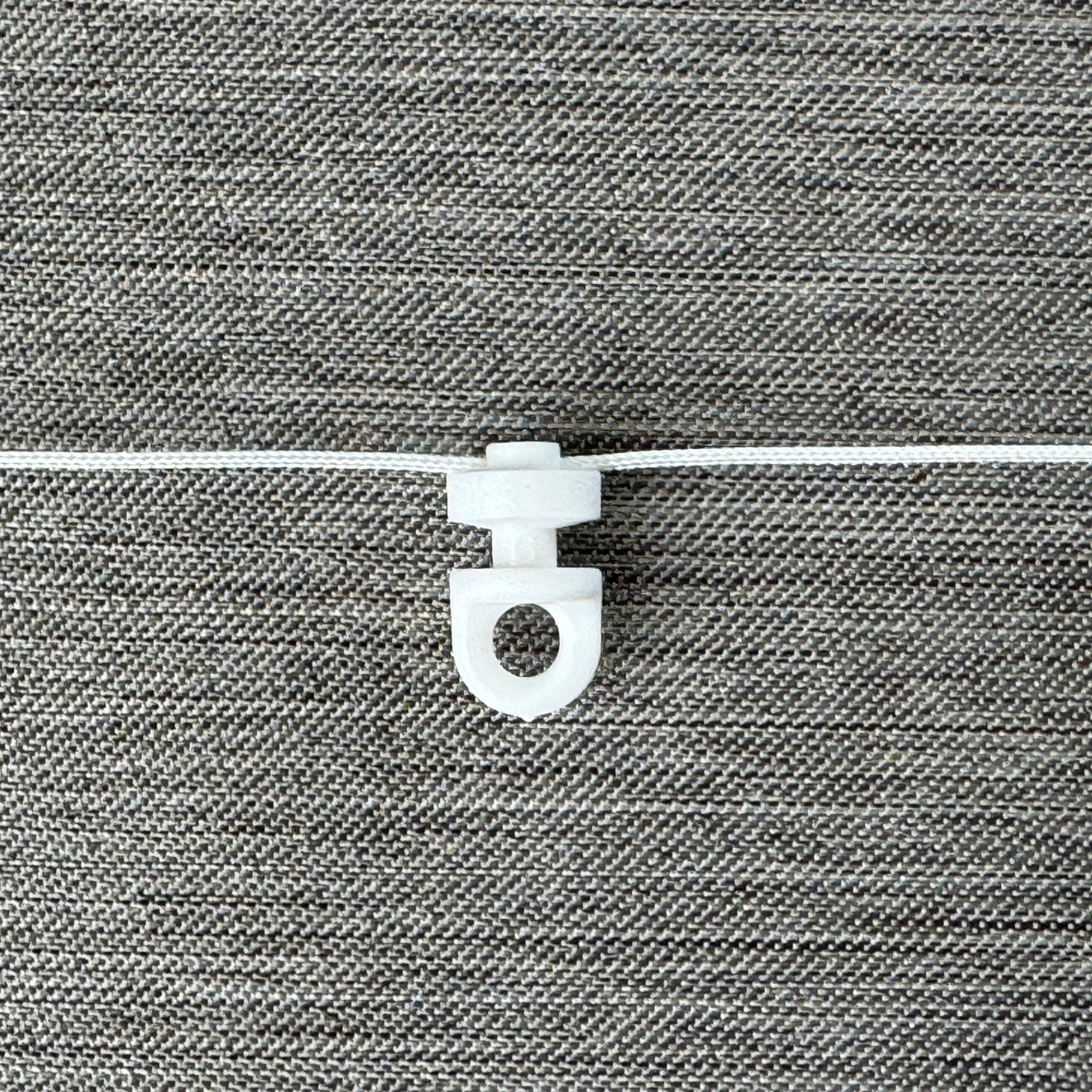

EYELET CARRIER DIMENSIONS Height 3/4" / 20 mm Width 3/8" / 10 mm Depth 3/8" / 10 mm Neck 1/8" / 4 mm
80% Fullness - spacing of 2 3/8" / 60 mm - 1 yard = 16 EYELET CARRIERS - 1 meter = 18 EYELET CARRIERS 100% Fulness - spacing of 2 1/8 "/ 53 mm - 1 yard = 18 EYELET CARRIERS - 1 meter = 20 EYELET CARRIERS
The number of carriers should be always a pair number, it takes two Eyelet Carriers to form a Wave. When curtain is split in two parts, there should be 2 sets op pair numbers etc.
EXAMPLE: If you have 46 carriers for one curtain of 2.3 meters at 100% Fulness, the number is correct. But if you divide the curtain in two part you get 23 + 23 which gets us 2 impair numbers. In this case you need 48 carriers to get the next pair number 24 + 24. So you are able to form 12 waves for each curtain.
*** IF UNSURE? Please send us your sizes and we can always guide you.
Materials: Plastic, Polyester, Carriers, Gliders
